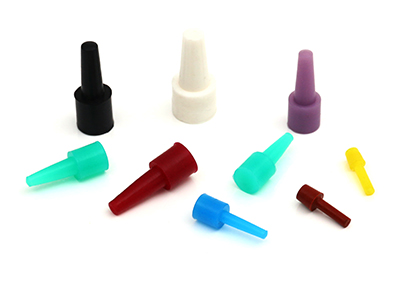

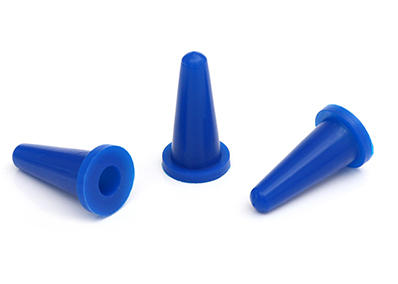

Chamfer Pull Plugs

Uses
1.Ideal for masking leading threads and chamfers
2.Order slightly larger than hole size to provide a tight seal

Product Features
1.Handle allows for easy application and removal, significantly improves productivity
2.Color coding available for easy sorting
3.Custom sizes available with little or no set up charge
4.Tip: Order a size slightly larger than hole diameter to provide a tight seal
5.Temperature Rating: 600 F / 315 C

Consult



Part Number

D

d

L

l

Color

PCS/BAG

Inches/Millimeters

WP175

0.175 / 4.45

0.120 / 3.05

1.000 / 25.40

1.000 / 25.40

red

500

WP218

0.220 / 5.59

0.120 / 3.05

1.000 / 25.40

1.000 / 25.40

blue

500

WP281

0.280 / 7.11

0.160 / 4.06

1.000 / 25.40

1.000 / 25.40

yellow

500

WP335

0.340 / 8.64

0.160 / 4.06

1.000 / 25.40

1.000 / 25.40

orange

500

WP350

0.350 / 8.89

0.160 / 4.06

1.000 / 25.40

1.000 / 25.40

red

500

WP437

0.440 / 11.18

0.240 / 6.10

1.000 / 25.40

1.000 / 25.40

purple

250

WP516

0.520 / 13.21

0.260 / 6.60

1.000 / 25.40

1.000 / 25.40

grey

250
