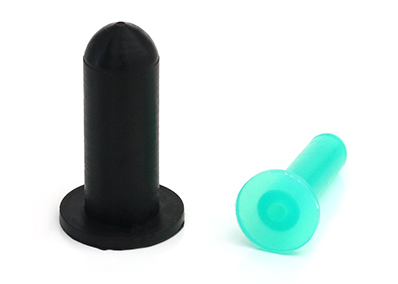

Washer Plugs
Uses
Recommended to mask the grounding area around threaded or non-threaded holes
Product Features
1.One plug can be used to fit two hole sizes
2.Offers excellent sealing ability
3.Color coding available by special order
4.Custom diameters, lengths and flanges available by special order with little or no set up charge
5.Temperature Rating: 600 F / 315 C
Consult

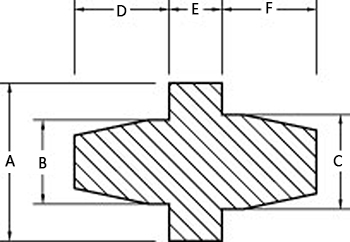

PART NUMBER | Color | A | B | C | D | E | F | PCS/BAG |
UW380 | YELLOW | 6.4 | 2.4 | 3.3 | 8.8 | 5.0 | 12.8 | 1000 |
UW400 | BLACK | 7.9 | 3.4 | 4.0 | 12.4 | 4.9 | 12.8 | 1000 |
UW415 | LIGHT GREEN | 12.8 | 3.2 | 4.7 | 9.7 | 5.1 | 12.6 | 500 |
UW-M10 | YELLOW | 21.0 | 9.6 | 10.7 | 19.2 | 5.0 | 21.4 | 250 |
UW-M12 | CLEAR | 24.0 | 10.9 | 12.7 | 21.8 | 5.0 | 25.4 | 250 |
UW-M3 | DARK GREEN | 7.0 | 2.8 | 3.7 | 5.6 | 5.0 | 7.4 | 1000 |
UW-M4 | PINK | 9.0 | 3.6 | 4.7 | 7.2 | 5.0 | 9.4 | 1000 |
UW-M5 | CLEAR | 10.0 | 4.5 | 5.7 | 9.0 | 5.0 | 11.4 | 1000 |
UW-M6 | RED | 12.5 | 5.3 | 6.7 | 10.6 | 5.0 | 13.4 | 500 |
UW-M8 | BLACK | 17.0 | 7.1 | 8.7 | 14.2 | 5.0 | 17.4 | 500 |
