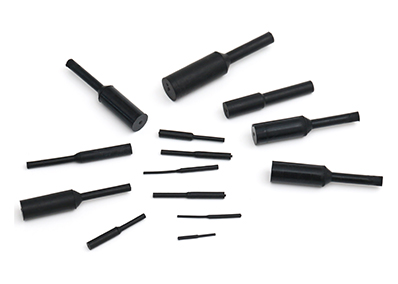

Flange Plugs
Uses
Recommended to mask threaded and non-threaded holes and the grounding area
Product Features
1.Offers excellent sealing ability
2.Color coding available by special order
3.Custom diameters, lengths and flanges available by special order with little or no set up charge
4.Temperature Rating: 600 F / 315 C
Consult
Part Number | Color | A（±0.3mm） | B(±0.2mm) | C(±0.5mm) | D(±0.2mm) | PCS/Bag |
HWP-0330 | CLEAR | 12.5 | 6.5 | 23.0 | 3.3 | 200 |
HWP-0450 | BLACK | 16.0 | 8.5 | 25.0 | 4.5 | 200 |
HWP-0500 | YELLOW | 16.5 | 10.0 | 28.0 | 5.0 | 200 |
HWP-0800 | DARK BLUE | 19.0 | 14.2 | 36.0 | 8.0 | 200 |
HWP-1150 | PURPLE | 25.0 | 17.5 | 38.0 | 11.5 | 200 |
HWP-1480 | GREY | 25.4 | 20.8 | 49.0 | 14.8 | 100 |
