Silicone Pull Plugs

Uses
1.Ideal for plugging both threaded and non-threaded holes
2.For protection of holes with a lead-in chamfer, Echo recommends Chamfer Pull Plug

Product Features
1.Order slightly larger than hole size to provide a tight seal
2.Handle allows for easy application and removal, significantly improves productivity
3.Color coding available for easy sorting
4.Custom sizes available with little or no set up charge
5.Temperature Rating: 600 F / 315 C

Consult

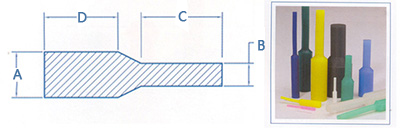

Part Number

A（mm)

B(mm)

C(mm)

D(mm)

SPP-0035-0750

0.89

0.64

19.05

19.05

SPP-0042-0500

1.07

0.64

12.70

12.70

SPP-0050-0500

1.27

0.64

12.70

12.70

SPP06

1.57

1.17

8.56

9.53

SPP-0062-0500

1.57

1.02

12.70

12.70

SPP-0068-0500

1.57

1.02

12.70

12.70

SPP07

1.70

1.19

15.49

15.88

SPP08

1.85

1.17

14.99

15.54

SPP-0080-1000

2.03

1.02

25.40

25.40

SPP09

2.31

1.32

15.88

15.88

SPP-0093-1000

2.36

1.57

25.40

25.40

SPP11

2.64

1.57

15.88

13.34

SPP-0109-1000

2.77

1.57

25.40

25.40

SPP-0120-1000

3.05

2.03

25.40

25.40

SPP11A

3.18

1.57

15.88

15.88

SPP14

3.30

2.36

25.40

25.40

SPP15

3.30

2.36

17.78

16.51

SPP-0130-1000

3.30

2.36

25.40

25.40

SPP17

3.61

2.16

14.17

15.88

SPP-0145-1250

3.68

2.36

31.75

31.75

SPP18

3.86

2.11

15.88

16.05

SPP20

3.96

1.57

19.05

15.88

SPP-0157-1250

3.99

2.36

31.75

31.75

SPP-157-0625

3.99

1.57

15.88

15.88

SPP22

4.11

2.44

14.76

15.88

SPP-0175-1250

4.45

2.36

31.75

31.75

SPP-0190-1250

4.83

3.18

31.75

31.75

SPP23

4.95

2.79

15.88

15.88

SPP30

5.54

3.30

25.40

25.40

SPP-0218-1250

5.54

3.18

31.75

31.75

SPP33

5.72

3.18

25.40

25.40
