Flangeless Plugs

Uses
1.The tapered design and hollow core allow multiple hole sizes to be masked
2.Protects threaded holes (including the top thread) without masking the surrounding area

Product Features
1.Handle enables easy insertion and removal
2.Designed to be pushed into place for fast application
3.Offers excellent sealing ability
4.Color code stocked for easy sorting
5.Custom sizes available with little or no set up charge
6.Temperature Rating: 600 F / 315 C

Consult

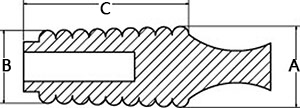

PART NUMBER

Color

A(±0.6mm)

B(±0.25mm)

C(±0.25mm)

PCS/BAG

UFP00250

CLEAR

5.8

4.0

25.4

250

UFP00312

BLACK

8.0

5.6

25.4

250

UFP00406

YELLOW

9.7

8.0

25.4

250

UFP00468

CLEAR

11.9

9.7

25.4

250

UFP00562

LIGHT BLUE

14.6

12.2

25.4

250

UFP00625

PURPLE

16.0

14.2

25.4

250

UFP00718

RUSTY RED

18.0

16.0

25.4

250

UFP00787

LIGHT GREEN

20.0

18.0

25.4

100

UFP00866

GREY

22.0

20.0

25.4

100

UFP00945

CLEAR

24.0

22.0

25.4

100

UFP01024

BLACK

26.0

24.0

25.4

100

UFP01102

DARK GREEN

28.0

26.0

25.4

100
